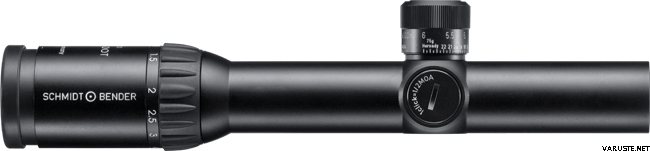

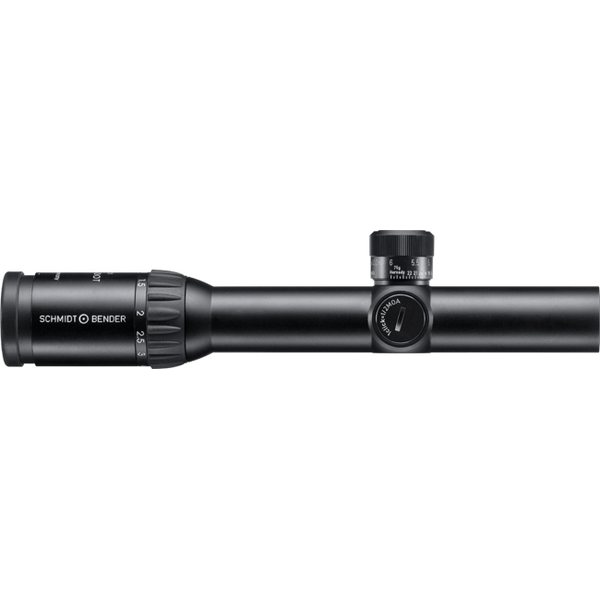

Schmidt & Bender 1.1-4x20 PM ShortDot

The 1,1-4x20 PM Short-Dot model is a combination of a red dot sight and a scope. It has been developed for the use at short and medium distances. With a low magnification the Short-Dot may be used like a red dot sight. The red target dot is mirrored in the center of the reticle. Turned off the illuminated dot vanishes completely leaving the user with a normal reticle. The illuminating unit offers 5 illumination stages for the use in broad daylight. The red dot remains visible, even on snow or sand or in bright sunlight. The use in poor lighting conditions provides for 3 illuminated stages, while another 3 three stages permit the use in combination with night-vision goggles. An automatic locking function is used to secure elevation and windage as well as the illuminating unit against any involuntary adjustment.

Unit	A	B	C	K	L	G
mm inch	96,0 3.78	70,0 2.76	75,0 2.95	43,0 1.69	268,5 10.60	30,0 1.18

Field of view m/100 m	32 - 10
Exit pupil diameter mm	14 - 5
Eye relief distance mm	90
Twilight factor	3,1 - 8,9
Transmission	75 %
Optical data dptr.	+2/-3
Parallax adjustment	100 m fix
Weight g	570
Reticles	CQB
