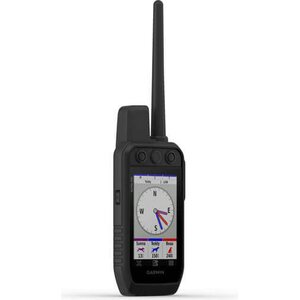

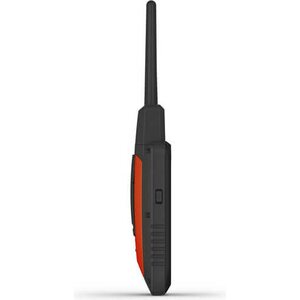

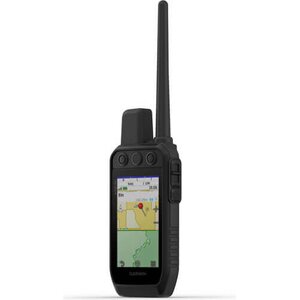

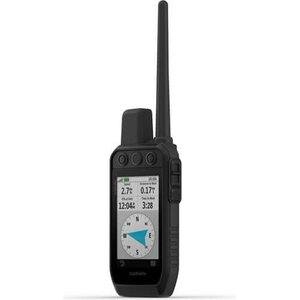

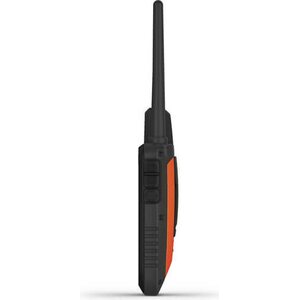

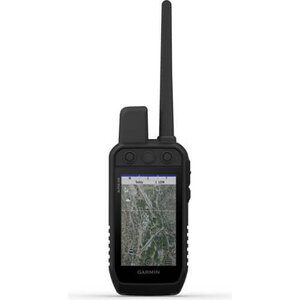

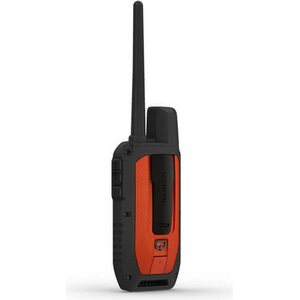

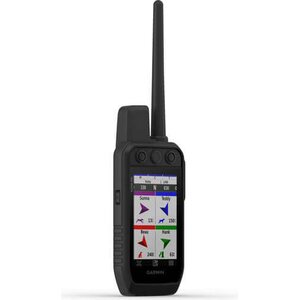

Garmin Alpha 200 Handheld

Locate dogs Garmin Alpha 200, with a 3.5" capacitive touch screen that is clearly readable even in sunlight and a user-friendly user interface with six buttons.

• A clear display makes monitoring easier and faster
• Follow the dogs in the terrain.
• Make configuration and management easier by keeping inactive dogs in the system.
• Navigate your hunt with Garmin's best maps and sensors.
• The power of the user-replaceable battery is enough for up to 20 hours.

With the Alpha 200 dog tracking system, you can track up to 20 dogs or devices¹ at the same time from up to 14.4 km away (depending on the collar). The device has a 3.5-inch screen and an update interval of 2.5 seconds. Using the device is easy with the help of buttons. In addition to tracking functions, high-class Garmin navigation functions, preloaded European TopoActive maps, BirdsEye satellite images that can be loaded directly into the device, and a three-axis compass and barometric height sensor are available.

• Large and sharp 3.5 inch touch screen. Six buttons that make using the device easy and fast
• Simultaneous tracking of up to 20 dogs or devices¹ from up to 14.4 km away (depending on the collar). Update interval 2.5
• seconds
• Thanks to the dog list and groups, dogs in inactive mode can be stored in the device
• Dogs can be tracked from the car (Garmin DriveTrack™ 71), from a wrist device (fenix 6® smart watches) or in some other way,
• because data is transferred wirelessly from one compatible Garmin device to another
• Thanks to multiple satellite navigation systems (GPS and Galileo), the accuracy is better than GPS alone
• when using
• The device is preloaded with European TopoActive maps, which show mountains, parks, coastlines, rivers, lakes and
• other points of interest.
• BirdsEye satellite images can be downloaded directly to the device (no subscription required) and create waypoints for landmarks
• by.
• The barometric height sensor helps you understand whether you are moving up or down. You can also see small air pressure
• changes. The three-axis compass shows the direction both when you are moving and when you are standing still
• A training facility that utilizes sound and vibration
• The timer can be used in a hunting test or training. Programming a timer to one of the hotkeys
• makes it easier to use
• In compass mode, you can see the direction and distance of the dogs. You can also see if they are chasing game or if they are standing still
• When the device is paired with the Garmin Explore app on a compatible smartphone, you can see the real-time
• tracking information, you save the tracks of the dogs and review the progress of the hunting trip in more detail afterwards with your smartphone
• or on a tablet
• Additional maps can be loaded into the MicroSD™ card slot, which are sold as accessories
• Compatible with previous dog collars2
• and other Alpha compatible devices; download
• location data between compatible Garmin devices
• The replaceable battery lasts up to 20 hours

Included in the package:

• Alpha® 200 handheld device with rechargeable Li-ion battery
• 1-inch orange collar
• Belt clip
• Transformer
• USB cables (micro and mini)
• Guides

Compatible devices:
Open

Specifications

Dimensions:   7.70 x 6.40 x 1.30″ (6.80 x 16.20 x 3.40 cm) *dimensions do not include antenna
Touch screen : Yes
Screen size, lxh:   1.80″ W x 3.0″ H (4.70 x 7.70 cm); 3.50″ diag (88.90 mm)
Screen resolution, lxk:   282 x 470 pixels
Screen type:   Reflective, color TFT touch screen
Weight:   280 g, including standard antenna and battery
Battery:   rechargeable Lithium ion (standard equipment)
Battery life:   a maximum of 20 hours
Water classification:   IPX7
Sensitive receiver:   Yes
Connections:   Fast USB
Memory/History:   16 GB

Maps and memory

Preloaded maps:   Yes (Topoactive Europe)
Possibility to add maps:   Yes
Basic map:   Yes
Automatic routing (road route turn by turn):   Yes (optional detailed road maps)
Birdseye:   Yes, directly to the device (no annual subscription required)
Storage capacity and power:   MicroSD™ card (optional)
Waypoints/favorites/locations:   10,000
Trace:   up to 20 dogs (tt 15/tt 15 mini and t5/t 5 mini) and friends (alpha 100 and alpha 200i) at the same time
Trace log:   20,000 points, 250 saved gpx tracks, 300 saved fit runs
Routes:   250
Saved contact information:   250 dogs
Group management:   Yes

Sensors

• Barometric altimeter: Yes
• Compass: Yes (tilt compensation, three-axis)

Outdoor and recreation features

• Sun and moon phase information
• Compatible with custom maps

Frequency band:   MURS
Area:   T 5, 14.50 kilometers

Wireless connections:   Yes (Wi-Fi®, Bluetooth® and ANT+®)

NOTICE: The use of satellite communications equipment is regulated or prohibited in some jurisdictions. It is the user's responsibility to know the applicable laws in the areas where the device is used and to comply with them.
